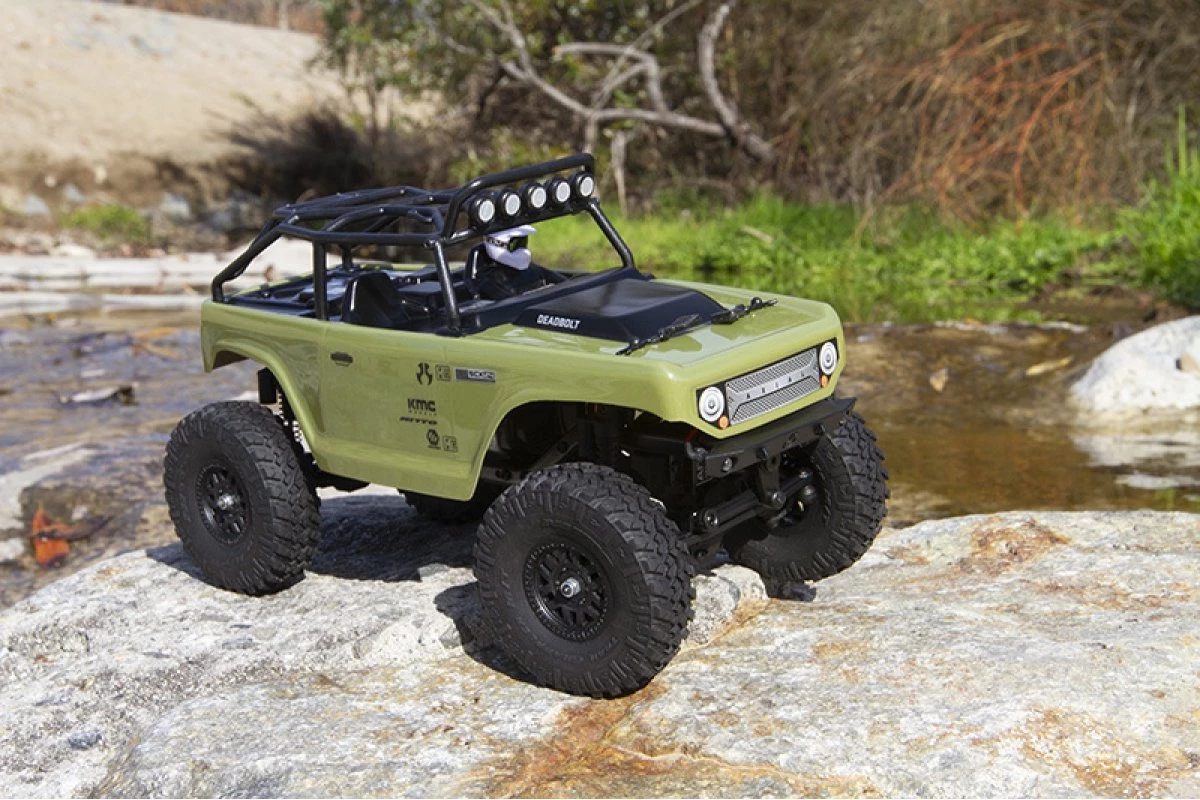

The SCX24™ Deadbolt™ 4WD is the first Axial® off-roader in 1/24 scale. At less than 8″ long, it’s the perfect rig to take along on your hiking, camping, and other outdoor and indoor adventures — offering factory-assembled ease, scale looks, and confident handling on any trail.

Even new modelers driving the SCX24 chassis will be well-equipped to tackle tough climbs and rough trails. Like the larger SCX10™ II chassis, this smaller version uses plenty of steel components — from the C-channel frame rails to the front and rear axles and dogbones. Even over off-road, mountainous, rocky and desert terrain, it has the strength to keep pushing onward and upward.

For the most reliable handling, the SCX24 chassis features a three-link front and four-link rear suspension. The combination of coil-over shocks and durable plastic suspension links delivers Axial-worthy crawling performance even at this small scale. The worm gear drive setup permits a high ground clearance plus a low gear ratio that reduces torque twist.

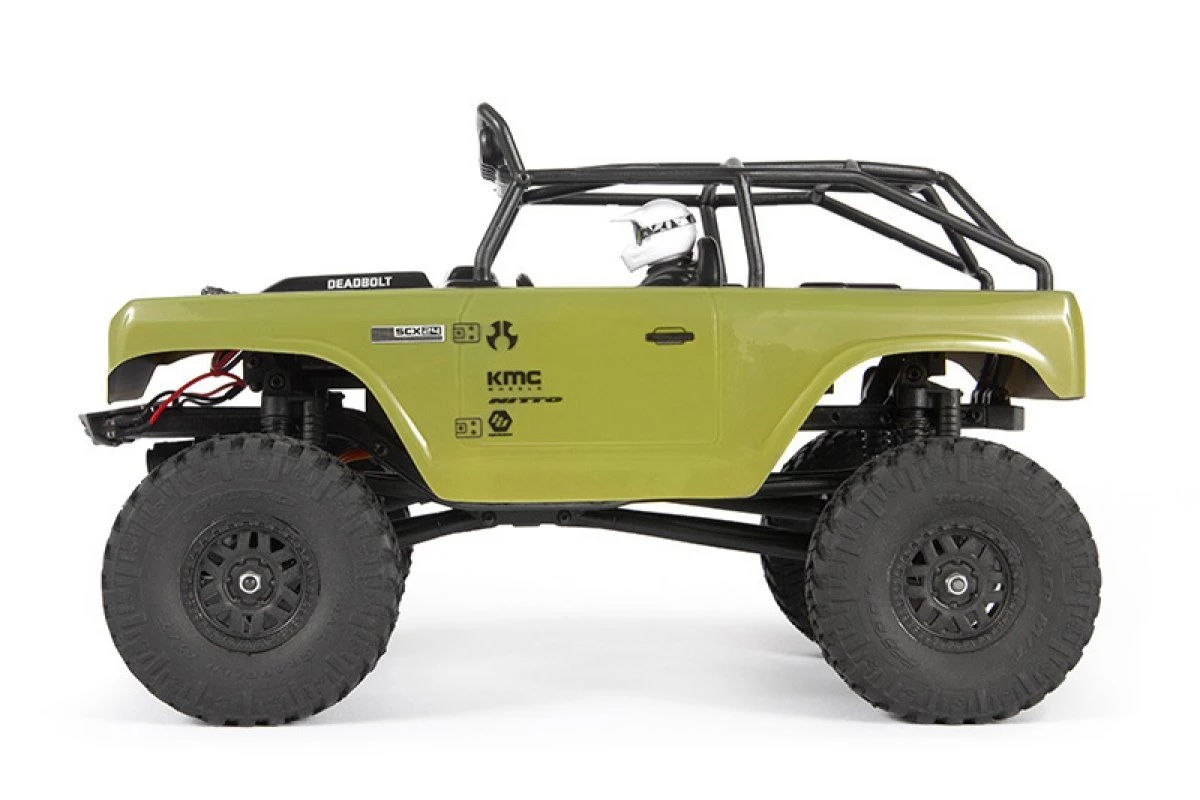

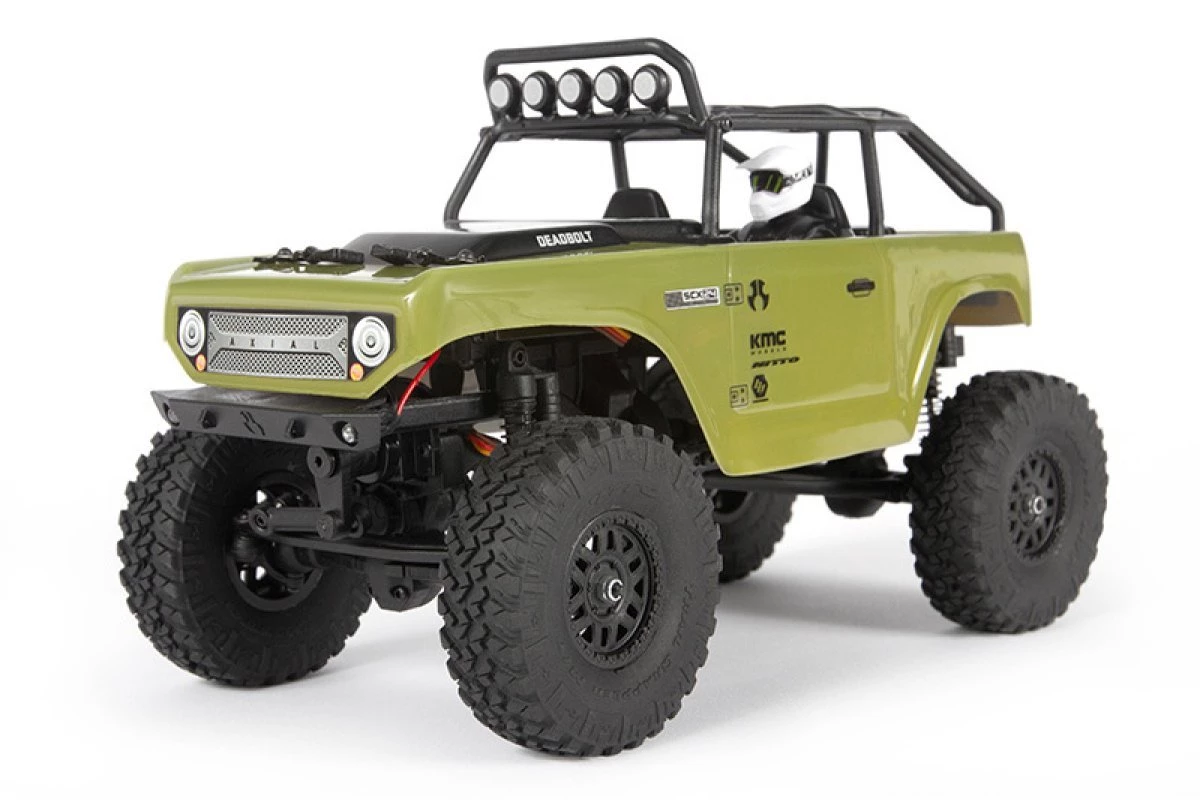

Powered by an included 180-size motor and LiPo battery, the SCX24 Deadbolt shows off competence and charisma on the trails. Check out that Deadbolt body — with its narrow stance, bulging hood, realistic driver figure, and molded roll cage with realistic light bar. The realism continues right down to the ground, where you’ll find licensed KMC XD229 Machete Crawl wheels wrapped in Nitto Trail Grappler tires.

Adding even more to its beginner appeal, the SCX24 Deadbolt comes 100% complete and ready to run. Everything required for action is in the box: assembled and finished vehicle; Axial 3-channel 2.4GHz radio system with servo and ESC/receiver unit; Dynamite® 88T brushed electric motor and 350mAh 2S 7.4V LiPo battery; USB LiPo charger; and even four AA cells for the transmitter!

Check out the Axial SCX24 RC Rock Crawler In Action!

• Includes radio system, ESC and transmitter batteries
• Includes motor and onboard LiPo battery
• Realistic narrowstance rock crawler body in olive green or red
• Molded roll cage with realistic light bar
• Realistic driver figure and many other scale details

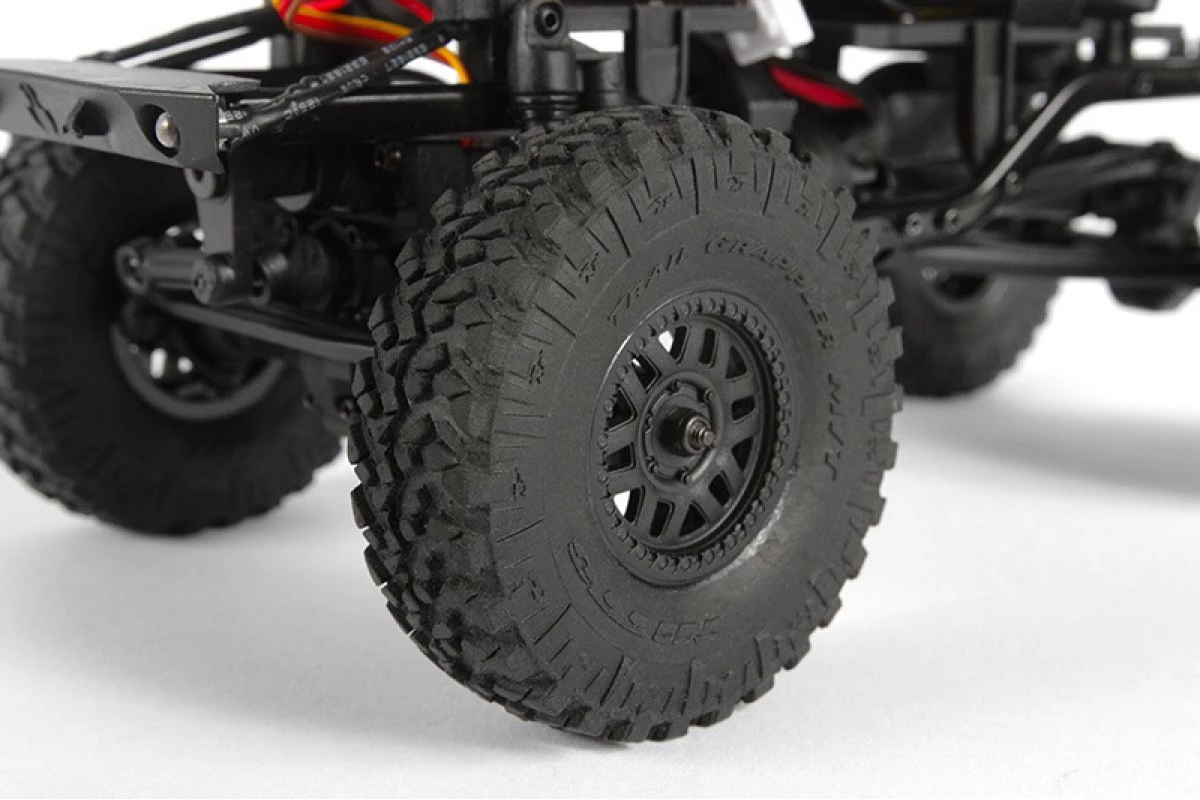

• Officially licensed KMC XD229 Machete Crawl wheels
• Officially licensed Nitto Trail Grappler M/T tires (S30 compound, large block tread)
• Fulltime 4WD
• Splined and sleeved front and rear drive shafts allow for maximum suspension travel while keeping the power to the wheels
• Steel front and rear axles, front stub axles and dogbones provide strength and durability

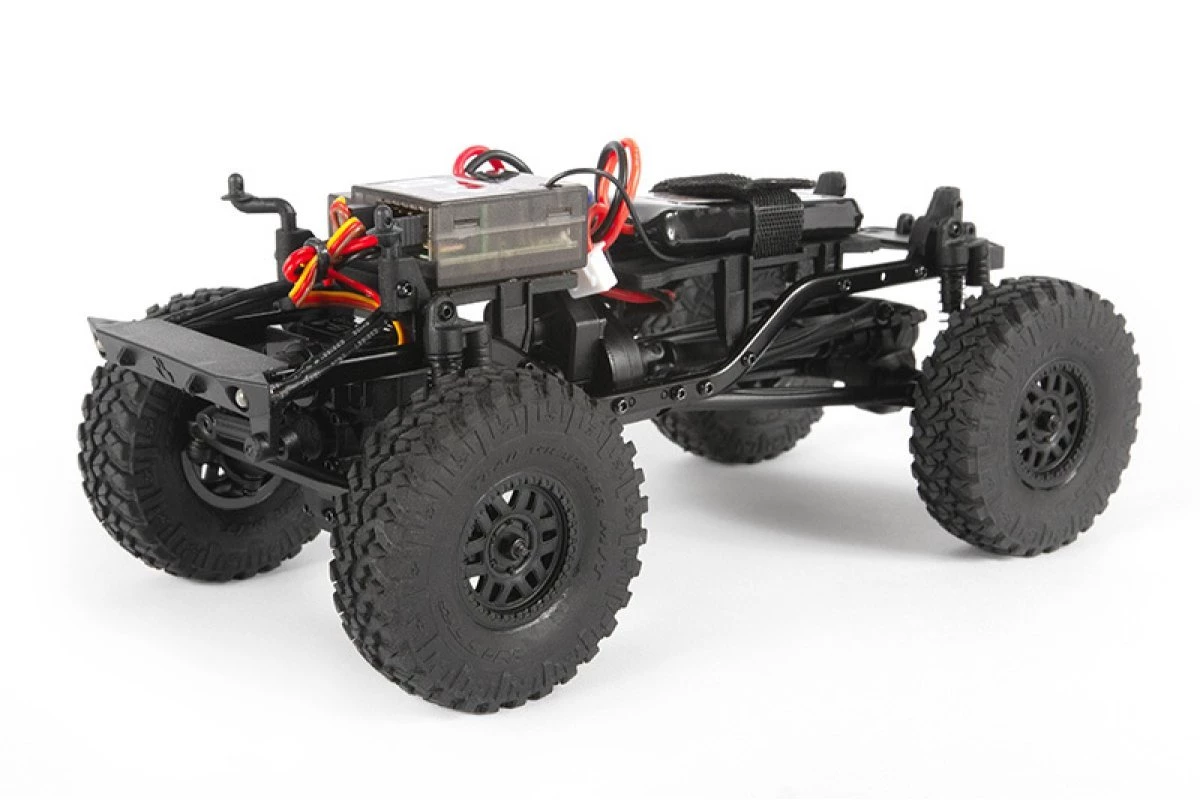

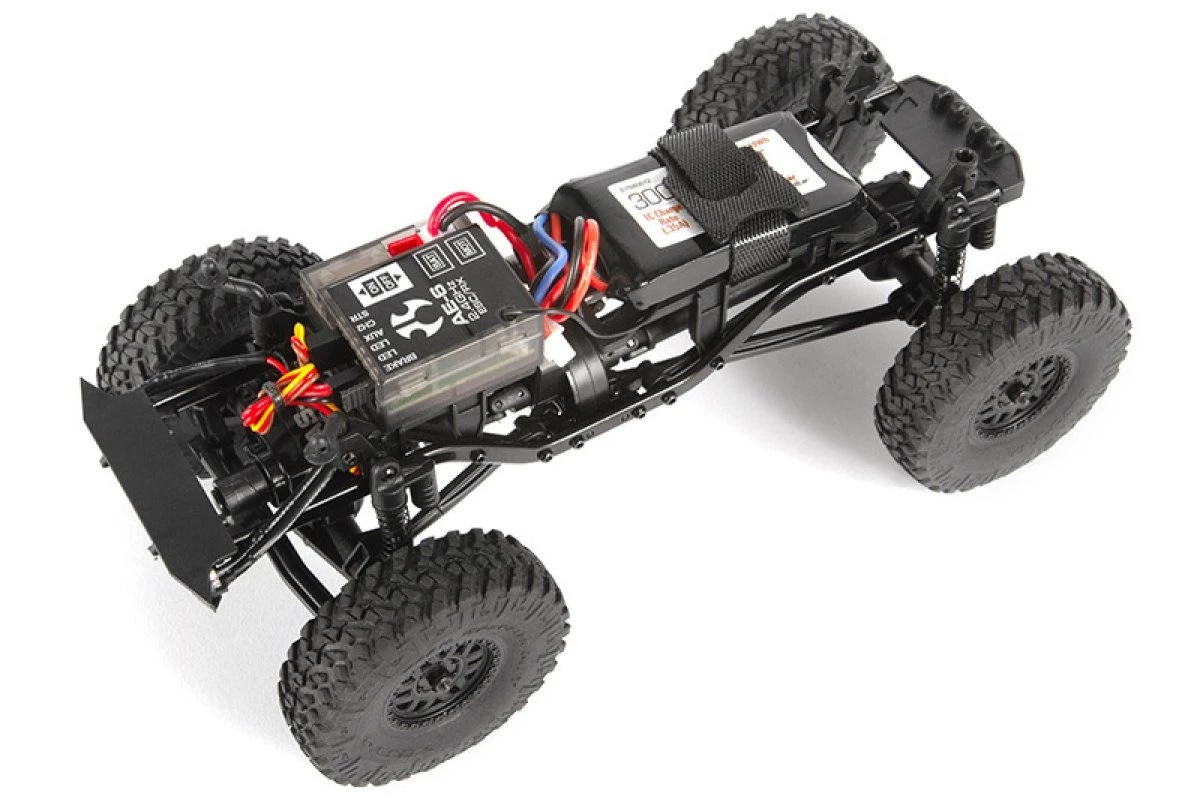

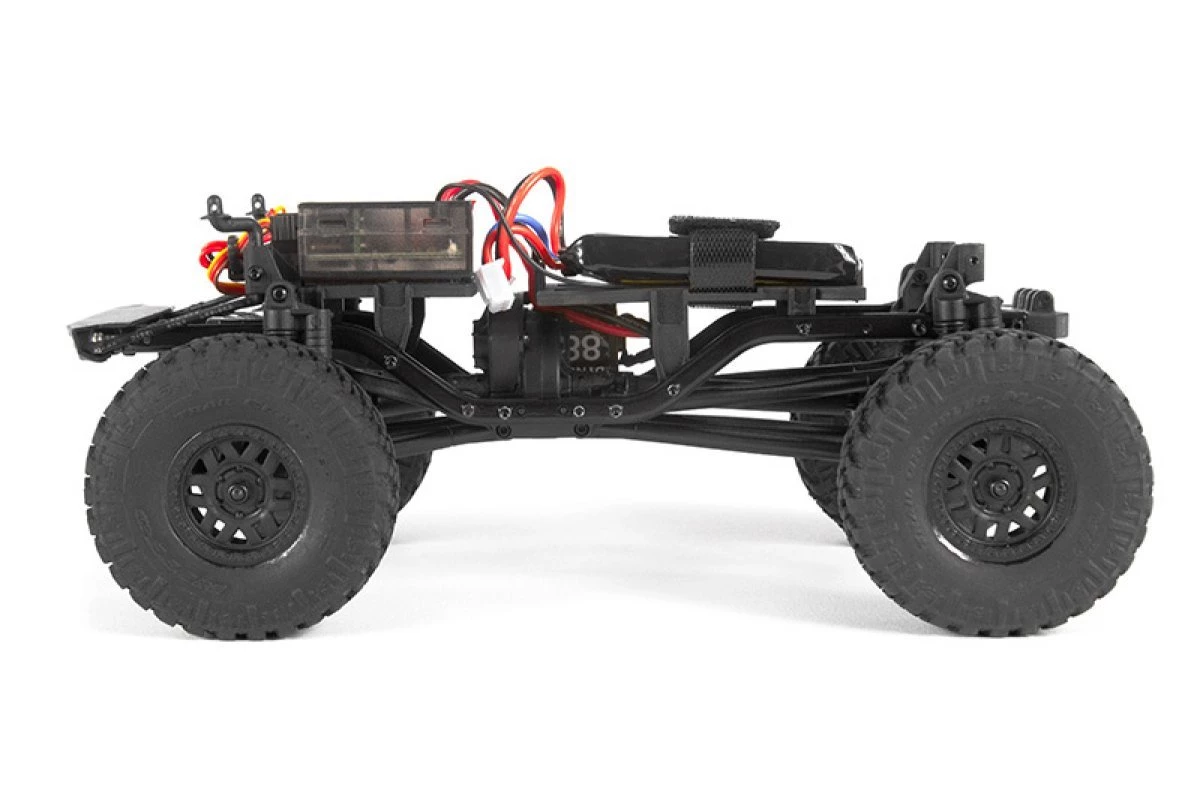

• Rugged steel Cchannel frame rails with bracing keep everything rigid and aligned
• Front and rear axles consist of a twopiece, molded plastic solid axle design
• 3Link front and 4link rear suspension supply optimal handling
• Coilover shocks with simulated reservoir and durable plastic suspension links deliver proven Axial crawling performance

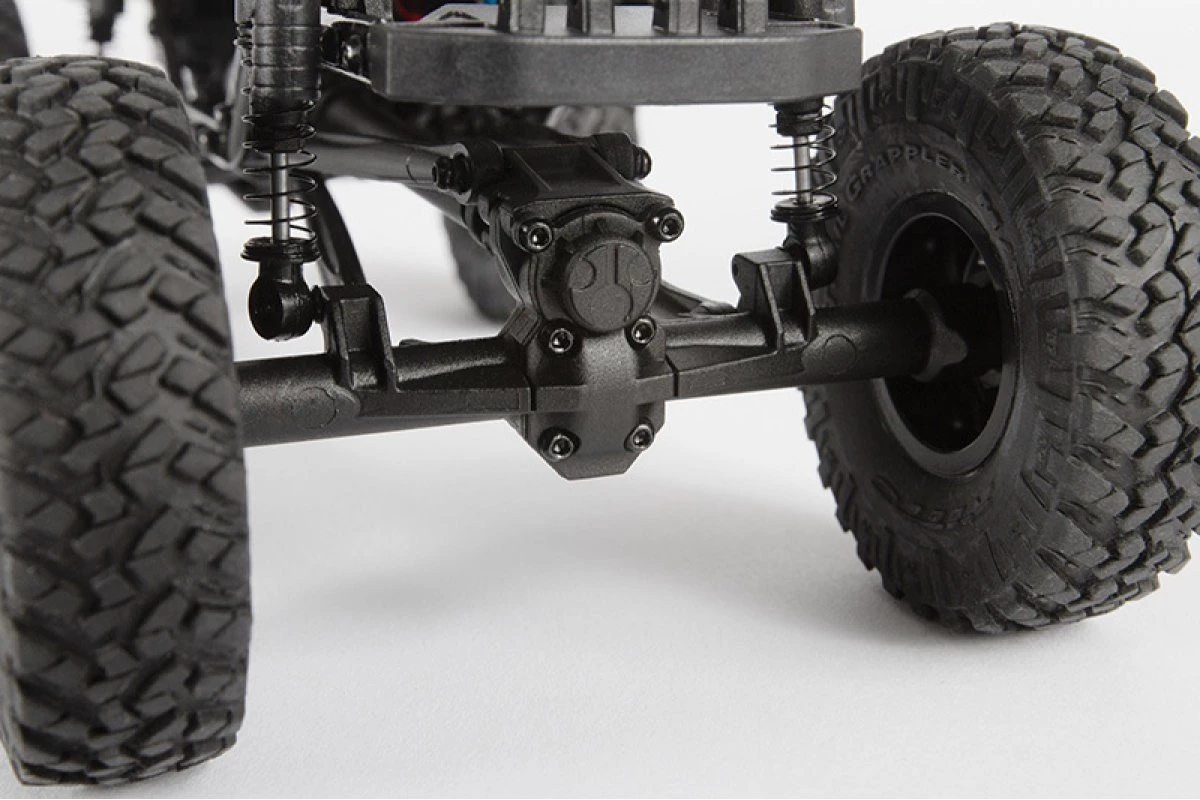

• Front and rear differentials each house a worm gear setup to power the axles and create higher ground clearance. Worm gear drive also provides a low gear ratio to reduce torque twist
• Two LEDs in the front bumper for night driving

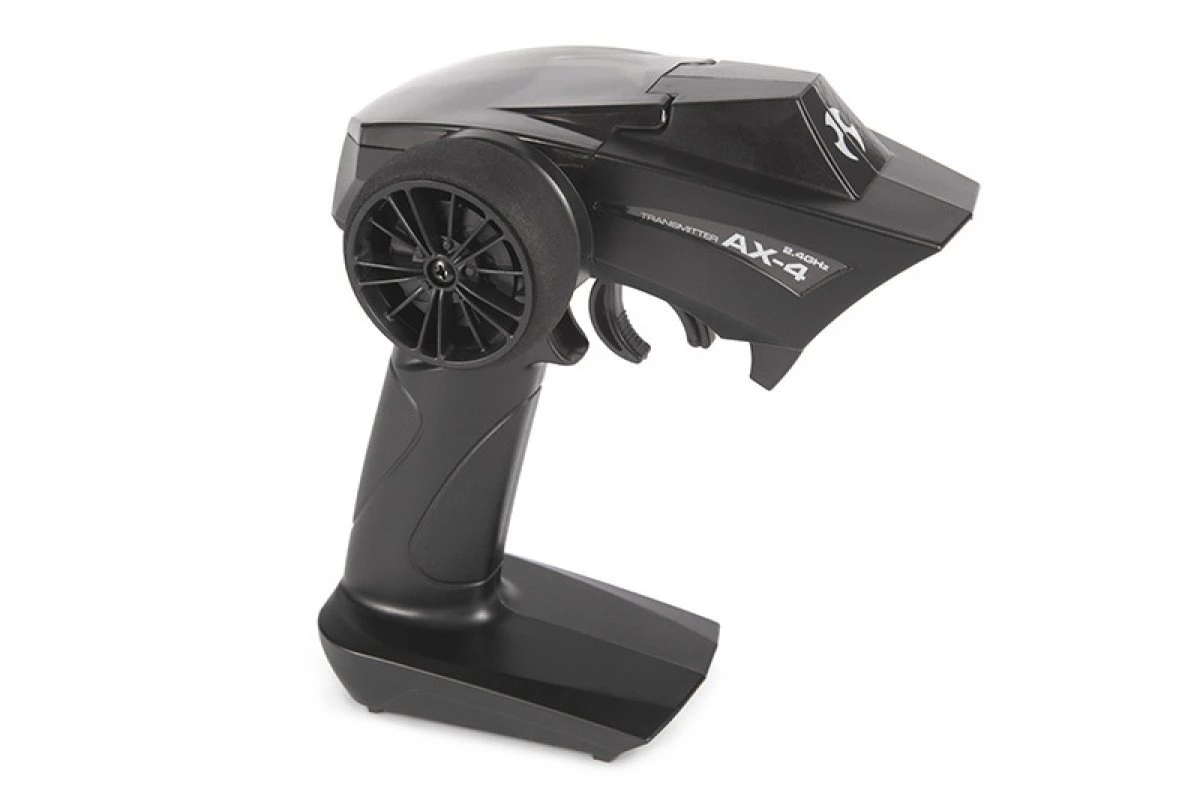

• Axial AX-4 2.4GHz, 3 Channel Radio System
• Axial AS-1 Servo

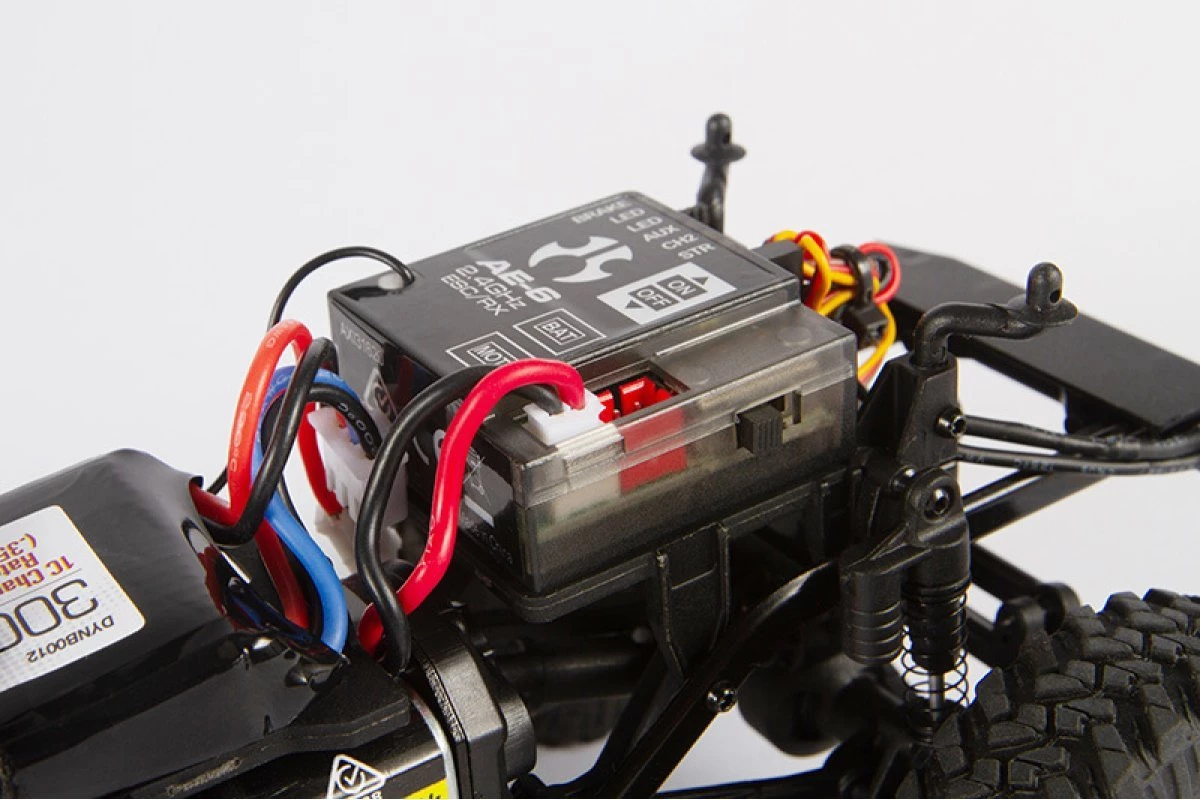

• Axial AE-6 ESC/Receiver Combo

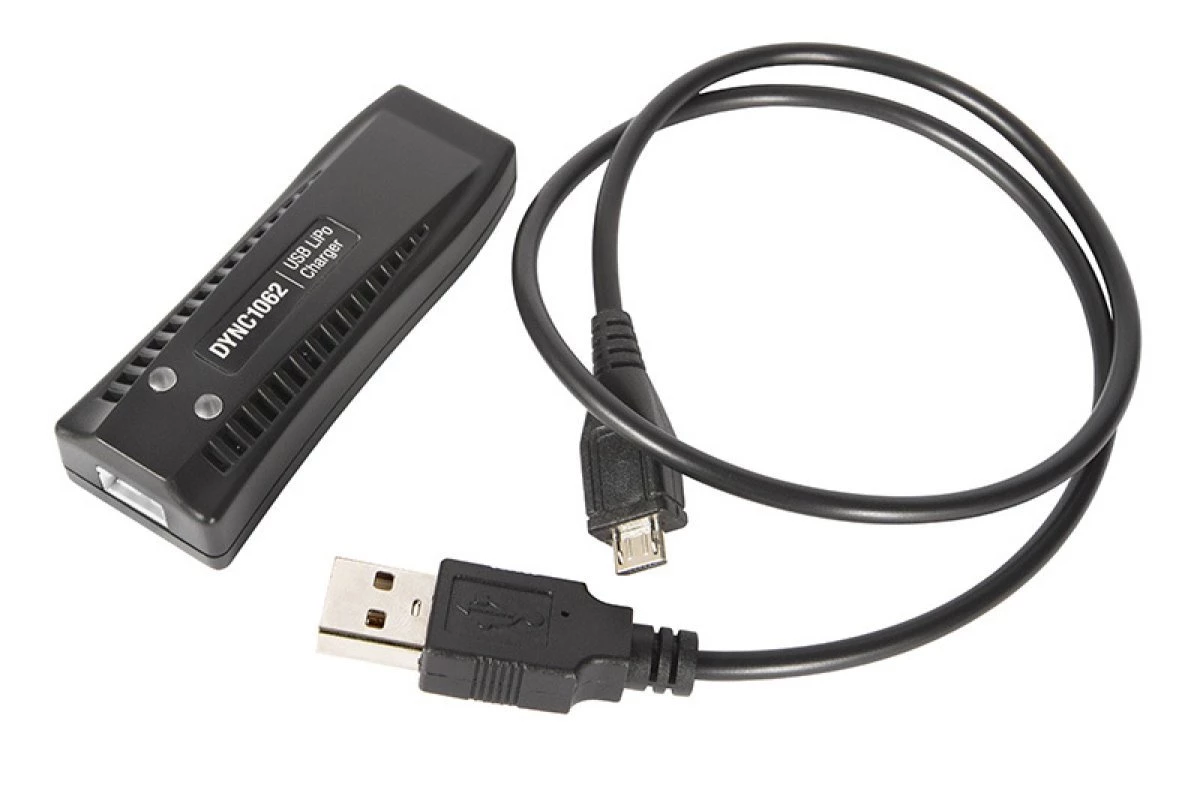

• USB Charger (DYNC1062)
• Dynamite 88T 030 Brushed Electric Motor

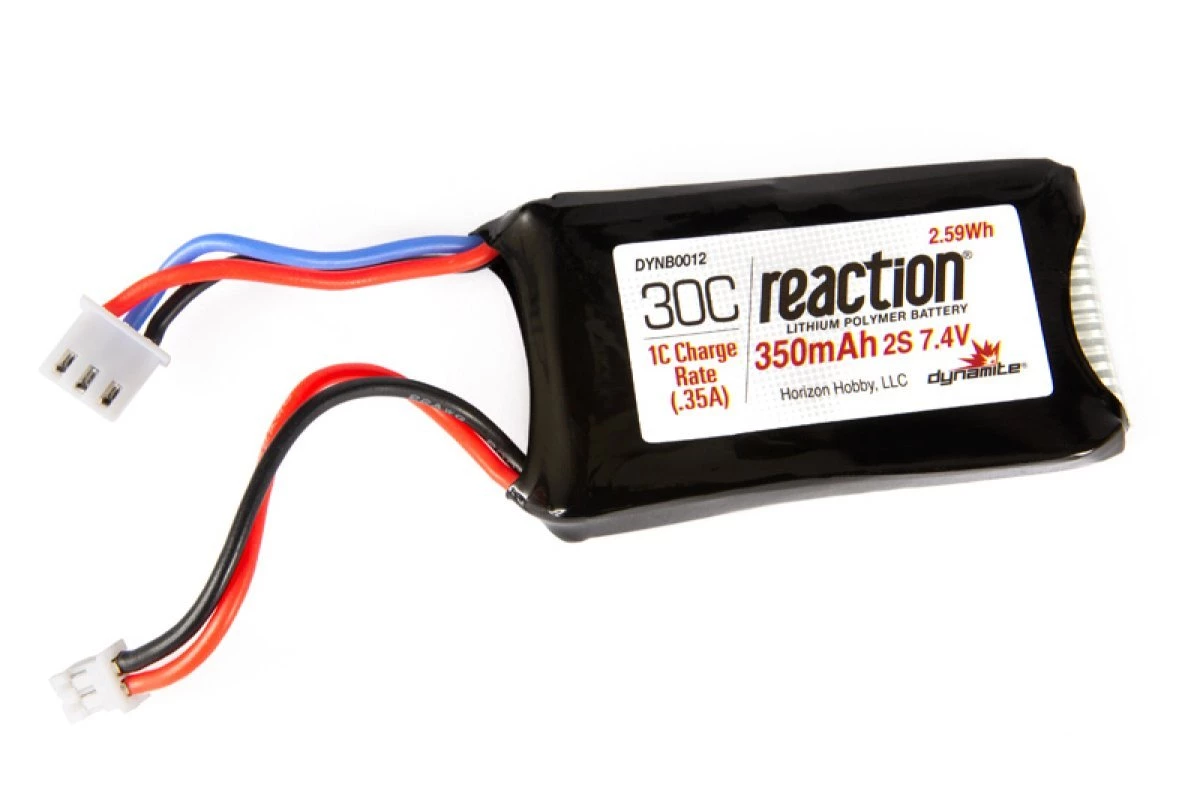

• Dynamite 350mAh 2S LiPo 7.4V Battery Pack (DYNB0012)
• 4AA Batteries for the Transmitter

• Length: 198mm (7.8″)
• Width: 100mm (3.9″)
• Height: 110mm (4.3″)
• Weight: 220g
• Wheel Base: 133.2mm (5.2″)
• Ground Clearance: 18mm (0.7″)
• Drivetrain: 4WD

Specifications

Car
Assembly Type:	Ready to Run
Max LiPo Power:	2S (7.4v)
Size (Scale):	1/24
Skill Level:	Beginner
Power Source:	Electric Brushed
Chassis Type:	Crawler
On/Off Road:	Off Road
Drivetrain:	4WD

Factory specs
Battery connector:	PH 2.0
